DXS-1210-12SСProject

10G Smart Switch with 10-port 10G SFP+ and 2-port 10GBase-T/SFP+ combo port

Description

The D-Link DXS-1210-12SC 10 Gigabit/Multi-Gigabit Ethernet Smart Managed Switch is a cost-effective 10 Gigabit switch capable of servicing a range of network needs in any business. Supporting 10GBase-T/SFP+ combo ports, this switch provides connection flexibility across a network allowing easier network integration. With high performance and low latency, the DXS-1210-12SC fulfills the needs for virtualization, cloud services, and server-to-server applications, making it perfect for Small-to-Medium-Business (SMB) customers.

Energy Efficient
By incorporating D-Link Green technology, this switch is capable of saving power without sacrificing operational performance or functionality. The switch features built-in smart fans with internal heat sensors that monitor and detect temperature changes and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switch’s power consumption and noise. Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode. The DXS-1210-12SC takes the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.

Extensive Management and Layer 2 Features
The DXS-1210-12SC comes with a complete lineup of L2 features, includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops. The cable diagnostic feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing hassle-free diagnostics and maintenance.

Quality of Service and Bandwidth Control
The DXS-1210-12SC supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology that consolidates data and surveillance video transmission through a single DXS-1210-12SC switch, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures quality real-time video monitoring and control without compromising the transmission of conventional network data. Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic. The Differentiated Service Code Point (DSCP) markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions that require higher priority or more bandwidth.

Secure your Network
D-Link’s innovative Safeguard Engine protects the switch against traffic flooding caused by malicious attacks. The DXS-1210-12SC supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. For added security, the DHCP server screening feature filters DHCP replies on unauthorized ports to prevent them from being assigned an IP address.

Versatile Management
The DXS-1210-12SC supports D-View and a full Command Line Interface (CLI) through the console port and Telnet. D-View is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.

Seamless Integration
The DXS-1210-12SC comes with both RJ-45 and SFP+ ports capable of connecting to Cat. 6 and fiber for 10G Ethernet. The DXS-1210-12SC has 10 SFP+ ports, and 2 10GBase-T/SFP+ combo ports. This means the DXS-1210-12SC can provide a flexible solution for upstream or downstream server connections, making network administration easy.

General features

Interfaces
• 10 SFP+ ports
• 2 100M/1G/2.5G/5G/10GBase-T/SFP+ combo ports
• RJ-45 console port

Port Standard & Functions
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE 802.3ab 1000Base-T Gigabit Ethernet
• IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable
• IEEE 802.3an 10GBase-T 10 Gigabit Ethernet
• IEEE 802.3ae 10GbE over fiber
• IEEE 802.3z 1000Base-X
• Auto MDI/MDIX support for 100Base-T/1GBase-T/2.5GBase-T/5GBase-T/10GBase-T

Diagnostic LEDs
• Power
• Fan Error
• Console
• Link/Activity/Speed (Per 10GBase-T port)
• Link/Activity/Speed (Per 10G SFP+ port)

Network Cables for 10GBase-T
• Cat. 6 (30 m max)
• Cat. 6A or Cat. 7 (100 m max)

Media Interface Exchange
• Auto MDI/MDIX adjustment for all twisted-pair ports

Switching Capacity
• 240 Gbps

Maximum Packet Forwarding Rate
• 178.56 Mpps

Transmission Method
• Store-and-forward

MAC Address Table
• Up to 32K entries per device

Packet Buffer
• 2 Mbytes

Flash Memory
• 128 Mbytes

Software Features
L2 Features
• MAC Address Table: Up to 32K entries
• Static MAC Addresses: 1K
• IGMP Snooping:
  IGMP v1/v2 Snooping
  IGMP v3 awareness
  Supports 384 IGMP groups
  Supports at least 128 static multicast addresses
  Per VLAN IGMP Snooping
  Support host-based fast leave
• MLD Snooping:
  MLD v1 Snooping
  MLD v2 awareness
  Support 384 groups
  Support 128 static multicast addresses
  Support host-based fast leave
• LLDP
• LLDP-MED
• Spanning Tree Protocol:
  802.1D STP
  802.1w RSTP
  802.1s MSTP
• Flow Control:
  802.3x Flow Control
  HOL Blocking Prevention
• Port Mirroring:
  One-to-One
  Many-to-One
  Supports Mirroring for Tx/Rx/Both
• 802.3ad Link Aggregation: Maximum of 8 groups/8 ports per group
• Jumbo Frame: Up to 10KB
• Loopback Detection
• ERPS (Ethernet Ring Protection Switching)

VLAN
• 802.1Q VLAN
• Port-based VLAN
• 4K VLAN Groups
• Configurable VID: 1~4094
• Auto Voice VLAN
• Auto Surveillance VLAN
• GVRP
• Asymmetric VLAN

Quality of Service (QoS)
• 802.1p Priority Queue
• 8 queues per port
• Queue Handling:
  Strict
  Weighted Round Robin (WRR
• Bandwidth Control:
  Port-based (Ingress/Egress, min. granularity 64 Kbps)

L3 Features
• IP Interface: Supports 8 IPv4/v6 interfaces
• ARP: 768 Static ARP
• Default Route
• IPv6 Neighbor Discovery (ND)
• Static Route:
  Max. 64 IPv4 entries
  Max. 64 IPv6 entries

Access Control List (ACL)
• Max. 50 access list
• Max. 256 ACL rules
• ACL based on:
  802.1p priority
  VLAN
  MAC address
  Ether type
  IP address
  DSCP
  Protocol type
  TCP/UDP port number
  IPv6 flow label

Security
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• DHCP Server Screening
• Port Security: Supports up to 6656 MAC addresses per port
• Duplicate Address Detection
• Traffic Segmentation
• SSL:
  Support v1/v2/v3
  Support IPv4/IPv6
• DoS Attack Prevention
• SSH

Operations, Administration, and Management (OAM)
• Cable Diagnostics

Authentication, Authorization, and Accounting (AAA)
• 802.1X Authentication:
  Support Dynamic VLAN Assignment
  Identity-driven Policy (VLAN/ACL/QoS) Assignment
  Supports local/RADIUS database
  Supports Port-based access control
  Supports Host-based access control
  Supports EAP, OTP, TLS, TTLS, PEAP
• Support IPv4/IPv6 RADIUS Server
• Guest VLAN
• Authentication for management access

Management
• Web-based GUI
• Full CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP: Supports v1/v2c/v3
• SNMP Trap
• LLDP
• LLDP-MED
• System Log
• BootP/DHCP Client
• SNTP
• ICMP v6
• IPv4/v6 Dual Stack
• RMON v1
• Trusted Host
• Dual Images
• Dual Configurations
• Debug command

Green V3.0 Technology
• Power Saving by:
  Link Status
  LED Shutoff
  System Hibernation
  Port Shutoff

MIB/RFC Standards
• RFC 2021 RMONv2 MIB
• RFC 2460 IPv6
• RFC 2461, RFC 4861 Neighbor Discovery for IPv6
• RFC 2462, RFC 4862 IPv6 Stateless Address Auto-configuration (SLAAC)
• RFC 2463, RFC 4443 ICMPv6
• RFC 2464 IPv6 over Ethernet and definition
• RFC 2465 IPv6 MIB
• RFC 2466 ICMPv6 MIB
• RFC 2474, RFC 3168, RFC 3260 Definition of the DS Field in the IPv4 and IPv6 Headers
• RFC 2571 SNMP Framework
• RFC 2572 SNMP Message Processing and Dispatching
• RFC 2573 SNMP Applications
• RFC 2574 User-based Security Model for SNMPv3
• RFC 2618 RADIUS Authentication Client MIB
• RFC 2668 802.3 MAU MIB
• RFC 2674, RFC 4363 802.1p MIB
• RFC 271, RFC 1757, RFC 2819 RMON MIB
• RFC 2893, RFC 4213 IPv4/IPv6 dual stack function
• RFC 2925 Ping & TRACEROUTE MIB
• RFC 3513, RFC 4291 IPv6 Addressing Architecture
• RFC 4022 MIB for TCP
• RFC 4113 MIB for UDP
• RFC 4293 IPv6 SNMP Mgmt Interface MIB
• RFC 4884 Extended ICMP to Support Multi-Part Messages
• RFC 768 UDP
• RFC 792 ICMPv4
• RFC 793 TCP
• RFC 826 ARP

Physical Parameters
Weight
• 2.718 kg

Dimensions
• 440 x 210 x 44 mm

Power Input
• 100 to 240 V AC

Maximum Power Consumption
• 27.4 W

Standby Power Consumption
• 11.2 W

Acoustic
• 46.3 dB (high speed)
• 42.6 dB (low speed)

Heat Dissipation
• 93.64 BTU/hr

MTBF (Hours)
• 554,218.04 hours

Ventilation
• 2 Smart Fans

Temperature
• Operating: -5° to 50°C
• Storage: -40° to 70°C

Humidity
• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing

EMI/EMC
• CE
• FCC
• IC
• RCM
• VCCI
• BSMI

Safety
• cUL
• CB
• BSMI

Certificates

Order info

DXS-1210-12SC/B1A  10G Smart Switch with 10-port 10G SFP+ and 2-port 10GBase-T/SFP+ combo port

Pictures

DXS-1210-12SС/B1

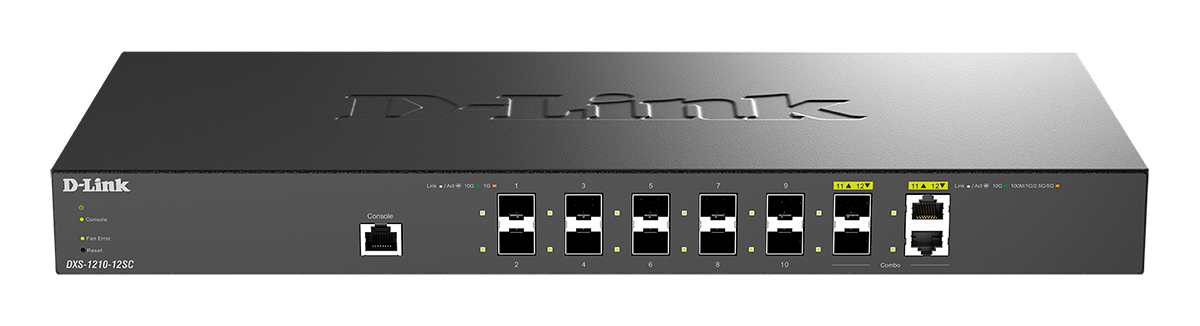

Front view

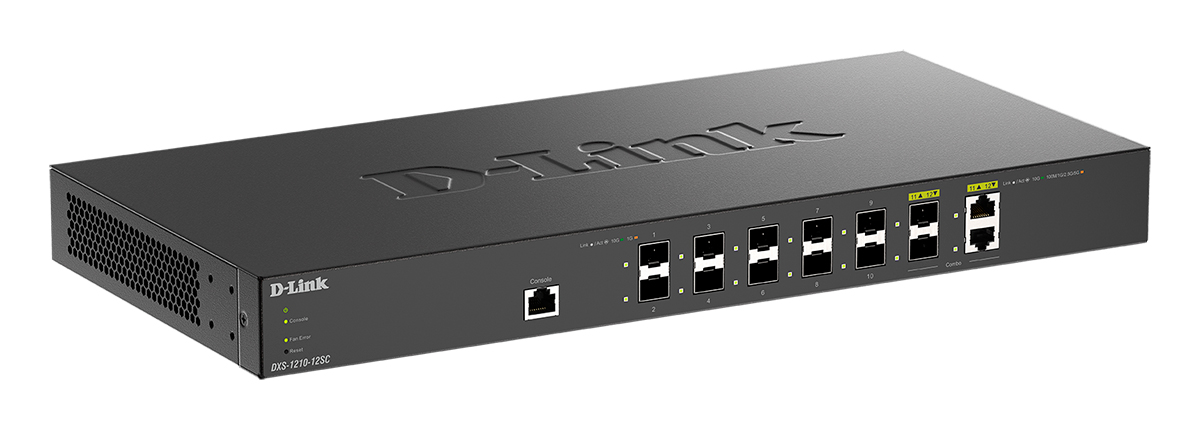

View from the right

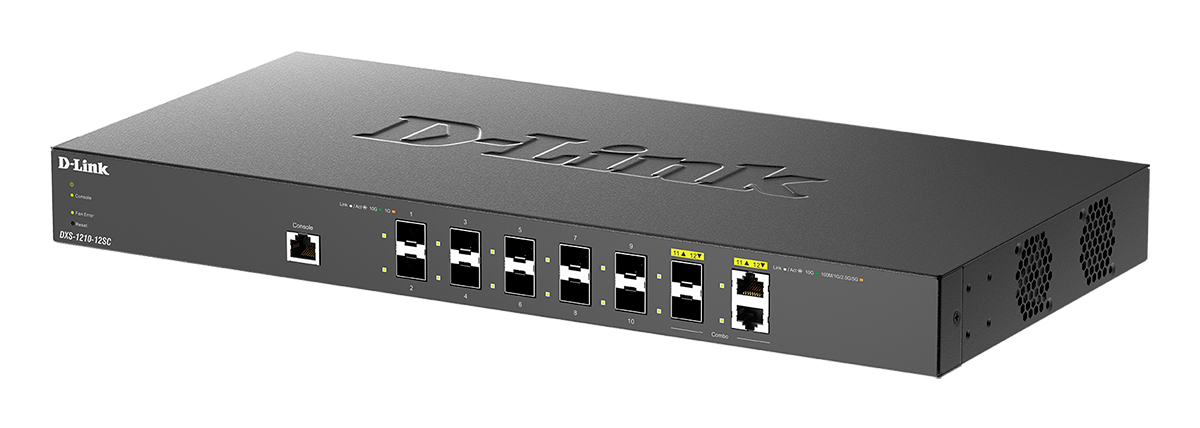

Left side view

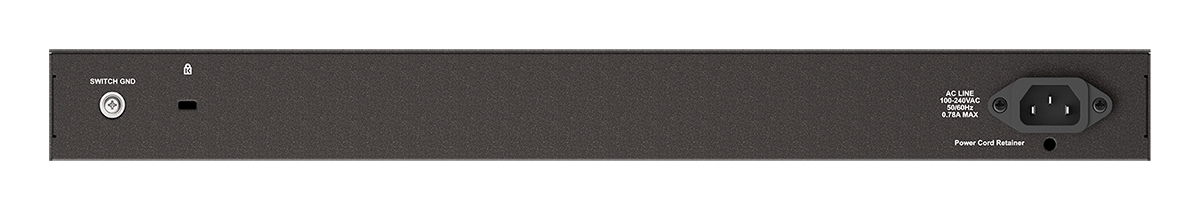

Back view
