DQS-5000-32SProject

32-port 40G QSFP+ interfaces data center switch with 2 front-to-back AC PSUs, 4 front-to-back fan modules

Description

The D-Link DQS-5000-32S Data Center Switch is a high-performance switch that features high port density, routing, and ultra-low latency, designed to be deployed as Top-of-Rack (ToR) or leaf-spine switch in data center applications. Combined with ONIE support and increased cost-efficiency, the DQS-5000-32S forms a flexible long-term solution for managing and expanding data center infrastructures in a Software-Defined Networking (SDN) environment.

Open Networking
The DQS-5000-32S switch supports open networking, providing IT professionals with innovative third-party operating systems and software options. This lowers costs by separating software from hardware and increases network agility and flexibility. With support for standards-based tools and standards-based applications, open networking simplifies scalability and future-proofs the network.

As bare metal switches, the DQS-5000-32S switch ships pre-loaded with Open Network Install Environment (ONIE). ONIE is an open source install environment that acts as an enhanced boot loader. This small Linux operating system allows administrators to install the network operating system(s) of their choice as part of the data center provisioning process in the same manner that servers are provisioned.

High Availability and Reliability
The DQS-5000-32S switch features a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Load sharing enables both power supplies to evenly distribute load to increase reliability and lifetime. Meanwhile, 1+1 redundancy minimizes downtime in case of a single power supply failure.

Flexibility and Versatility
Open Network Install Environment (ONIE) support means the switch can be easily integrated in existing network ecosystems using a variety of supported third-party Network Operating Systems (NOSs) for optimal compatibility. Furthermore, the ability to pick and choose software based on practical requirements eliminates the restrictions imposed by vendor-locked software environments.

Cost-Efficient with Dedicated Support
Compared to traditional switches, the DQS-5000-32S offers a more cost-efficient solution through a lower initial purchasing cost combined with a reduced long-term Total Cost of Ownership (TCO). The DQS-5000-32S switch features front-to-back and back-to-front airflow which optimizes air circulation inside the rack and facilitates the building of energy-efficient data centers by separating the hot and cold aisles. The switch also features built-in smart fans; internal heat sensors monitor and detect temperature changes, and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run more slowly, reducing the switch’s power consumption and noise.

Data Center and Virtualization Features
Data Center Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data center environments. The D-Link OS for the DQS-5000-32S switch supports several core components of Data Center Bridging (DCB), such as IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, and VXLAN. IEEE 802.1Qbb (Priority-based Flow Control) provides flow control on specific priority levels to ensure there is no data loss during network congestion. IEEE 802.1Qaz (Enhanced Transmission Selection) manages the allocation of bandwidth amongst different traffic classes. IEEE 802.1Qau (Congestion Notification) provides congestion management for data flows within network domains
to avoid congestion. Meanwhile, VXLAN allows network administrators to deploy larger and more flexible VLAN architectures. Using a 24-bit ID, VXLAN greatly increases the number of simultaneous VLANs. Compared to the 4096
limit of traditional VLAN protocols, VXLAN enables the deployment of up to 16 million isolated logical networks across Layer 3 subnets, to accommodate the increasing scale of virtualized cloud environments.

Complete Layer 2/3 Functionality
The DQS-5000-32S switch features a complete L2 and L3 feature set to meet the demands of data center applications. Layer 2 features include L2 switching, L2 multicast, advanced Quality of Service (QoS), and robust security features.
Meanwhile, the DQS-5000-32S offers advanced L3 routing for enterprise integration, including OSPF, BGP, Graceful Restart, Bidirectional Forwarding Detection (BFD), and L3 multicast.

General features

Interfaces
• 32 x 40G QSFP+ ports
• 1 x USB 2.0 port
• 1 x RJ-45 console port
• 1 x 10/100/1000BASE-T RJ-45 port

Switching Capacity
• 2.56 Tbps

Max. Forwarding Rate
• 1,428 Mpps

Packet Buffer Memory
• 12 MB

MAC Address Table
• 288K

Software Features (D-Link OS)
L2 Features
• 802.3ad Link Aggregation:
  Max. 64 groups per device
  Max. 32 ports per group
• Spanning Tree Protocol (STP):
  802.1D STP
  802.1w RSTP
  802.1s MSTP
  BPDU Filter/Guard
  Loop Guard
  TCN Guard
  Root Guard
• Supports 802.3x Flow Control
• Jumbo frame: up to 9 Kb
• Port mirroring:
  Supports One-to-One, Many-to-One
  Supports mirroring for Tx/Rx/Both
  Supports up to 4 mirroring groups
• Flow mirroring:
  Supports Rx mirroring
• VLAN mirroring
• RSPAN
• Multi-Chassis Link Aggregation (MLAG)

L2 Multicast Features
• IGMP Snooping:
  IGMP Snooping v1/v2/v3
  IGMP Fast Leave
  Supports up to 256 IGMP groups
  Per-VLAN IGMP Snooping
  IGMP Snooping Querier
• MLD Snooping:
  MLD Snooping v1/v2
  Supports up to 256 MLD groups
  Per-VLAN MLD Snooping
  MLD Snooping Querier

L3 Features
• IP interfaces:
  Supports 128 IP interfaces
• ARP:
  Supports 6K ARP entries
  Supports 256 static ARP entries
• IPv6 Neighbor Discovery (ND):
  Supports up to 2560 ND entries
  Supports up to 32 static ND entries
• Gratuitous ARP
• VRRP v2
• UDP Helper
• ICMP Router Discovery Protocol (IRDP)
• Equal-Cost Multi-Path (ECMP)
• IPv6 Tunneling:
  6to4
  GRE
• IPv4/IPv6 Loopback interface

L3 Routing
• Static routing:
  Max. 64 IPv4 entries
  Max. 64 IPv6 entries
  Supports Equal-Cost-Multi-Path Route (ECMP)
• OSPF:
  OSPF v2/v3
  Stub/NSSA Area
  OSPF Passive Interface
  Text/MD5 authentication
  Supports Equal-Cost-Multi-Path Route (ECMP)
• Supports 12K hardware routing entries shared by IPv4 and IPv6
• Supports 20K hardware L3 forwarding entries shared by IPv4 and IPv6
• IPv4/IPv6 Default Route
• Null Route
• Route Preference
• Route Redistribution
• Graceful Restart (GR) for OSPF
• Grace Restart (GR) Helper for RIP
• Bidirectional Forwarding Detection (BFD) for OSPF
• BGP:
  BGP4/BGP4+
  Max. 256 BGP neighbors
  Supports MD5 authentication
• Policy-based Route (PBR)

L3 Multicast Features
• IGMP v1/v2/v3
• MLD v1/v2
• DVMRP v3
• PIM-SSM
• SSM Mapping for IPv4/IPv6
• PIM-SM IPv4/IPv6
• PIM-DM IPv4/IPv6
• IGMP/MLD proxy

VLAN
• 802.1Q
• Port-based VLAN
• Multicast VLAN (ISM VLAN for IPv4/IPv6)
• Private VLAN
• Double VLAN (Q-in-Q)
• VLAN groups:
  Max. 4K VLAN groups
  Max. 1~4093 VLAN IDs

Security
• Broadcast/unicast/multicast control
• SSH:
  Supports v1/v1.5/v2.0
  Supports IPv4/IPv6 access
  Configurable TCP port number
• Port security:
  Supports up to 600 MAC addresses per port
• DoS attack prevention
• Traffic segmentation
• IP Source Guard
• DHCP Snooping
• IPv6 Snooping
• DHCP Server Screening
• Dynamic ARP Inspection (DAI)
• IPv6 Route Advertisement (RA) Guard
• Duplicate Address Detection (DAD)
• BPDU Attack Protection

Authentication, Authorization, Accounting (AAA)
• 802.1X authentication:
  Supports port-based access control
  Supports host-based access control
  Identity-driven policy assignment
  Dynamic VLAN assignment
  QoS assignment
  ACL assignment
• Guest VLAN
• RADIUS authentication
• TACACS+ authentication
• MAC-based Access Control (MAC):
  Supports port/host-based access control
  Compatible with RADIUS server authentication
• Authentication for management access
• Privilege level for management access
• Authentication database failover
• RADIUS/TACACS+ accounting

Quality of Service (QoS)
• Max. of 8 priority queues per port
• Queue handling:
  Strict Priority (SP)
  Weighted Deficit Round Robin (WDRR)
• Congestion control:
  Weighted Random Early Detection (WRED)
• Bandwidth control
  Queue-based bandwidth control; min. granularity of 1% of the port speed
• Three Color Marker:
  Two Rate Three Color Marker (trTCM)
  Single Rate Three Color Marker (srTCM)
• Class of Service (CoS):
  Switch port
  Outer 802.1p priority
  ToS/IP preference
  DSCP
• Policy Map:
  Remark 802.1p priority
  Remark ToS/DSCP
  Rate limiting

Data Center Features
• Open Network Install Environment (ONIE)
• FCoE Initialization Protocol (FIP) Snooping
• 802.1Qau Congestion Notification (CN)
• 802.1Qbb Priority-based Flow Control (PFC)
• 802.1Qaz Enhanced Transmission Selection (ETS)
• Data Center Bridging Exchange (DCBX)
• OpenFlow v1.3
• Open API
• Supports Puppet/Chef
• Virtual eXtensible Local Area Network (VXLAN)

Access Control List (ACL)
• MAC Access List based on:
  802.1p priority mask
  VID mask
  Source/destination MAC address mask
  Ether Type mask
• IP Access List based on:
  Source/destination IP address mask
  IP preference/ToS mask
  TCP/UDP port number mask
• IPv6 Access List based on:
  Source/destination IP address mask
  TCP/UDP port number mask
• CPU interface filtering:
  Max. 1023 rule entries
• Time-based ACL
• Max. ACL entries:
  Max. ingress ACL entries: 16K
  Max. egress ACL entries: 16K
  Max. number of access control lists: 100
  Max. VLAN access maps: 24
  Max. ACL rule entries: 1K

Management
• Industry-standard CLI
• Telnet server for IPv4/IPv6 access
• TFTP client for IPv4/IPv6
• FTP client for IPv4/IPv6
• Secure FTP (SFTP) client for IPv4/IPv6
• Multiple images
• Dual configurations
• SNMP:
  Supports SNMP v1/v2c/v3
  Supports IPv4/IPv6
• SNMP traps
• System log for IPv4/IPv6 Syslog server
• Command logging
• SMTP
• RMON v1:
  Supports 1/2/3/9 groups
• DHCP/BOOTP Client support for IPv4/IPv6 DHCP/BOOTP server
• DHCP Relay:
  Supports IPv4/IPv6
  Option 82
  Supports user-defined TLV for Option 82
• Event log
• DNS client
• SNTPv4
• LLDP/LLDP-MED
• CDP
• UDLD
• sFlow v5
• DHCP auto-configuration
• DHCP auto-image
• Flash file system
• DNS client for IPv4/IPv6
• Debug command
• Password recovery/encryption
• Supports IPv4/IPv6 Ping/Traceroute

Physical Parameters
Power Input
• 1+1 redundant power supply design
• Input: 100 to 240 V AC, 50/60 Hz

Maximum Power Consumption
• 406 W

Heat Dissipation (Max.)
• 1385.27 BTU/hr

Fans
• 4 fans

Acoustics
• Max: 69.8 dB / Min: 59.5 dB

MTBF (hours)
• 85,937

Dimensions (W x D x H)
• 440 x 406 x 44 mm

Weight
• 9 kg

Temperature
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C

Humidity
• Operating: 5% to 95% non-condensing
• Storage: 5% to 95% non-condensing

Safety
• cULus
• CCC
• BSM
• CB
• CE

EMI/EMC
• FCC/IC
• CCC
• CB
• CE
• BSMI

Certificates

Order info

DQS-5000-32S 32-port 40G QSFP+ interfaces data center switch with 2 front-to-back AC PSUs, 4 front-to-back fan modules

Pictures

DQS-5000-32S/A1

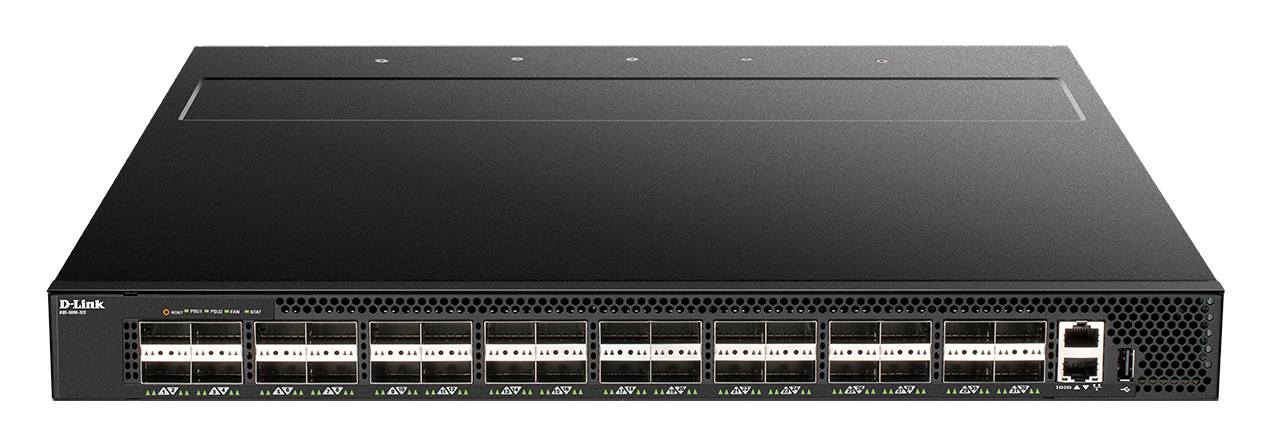

Front view

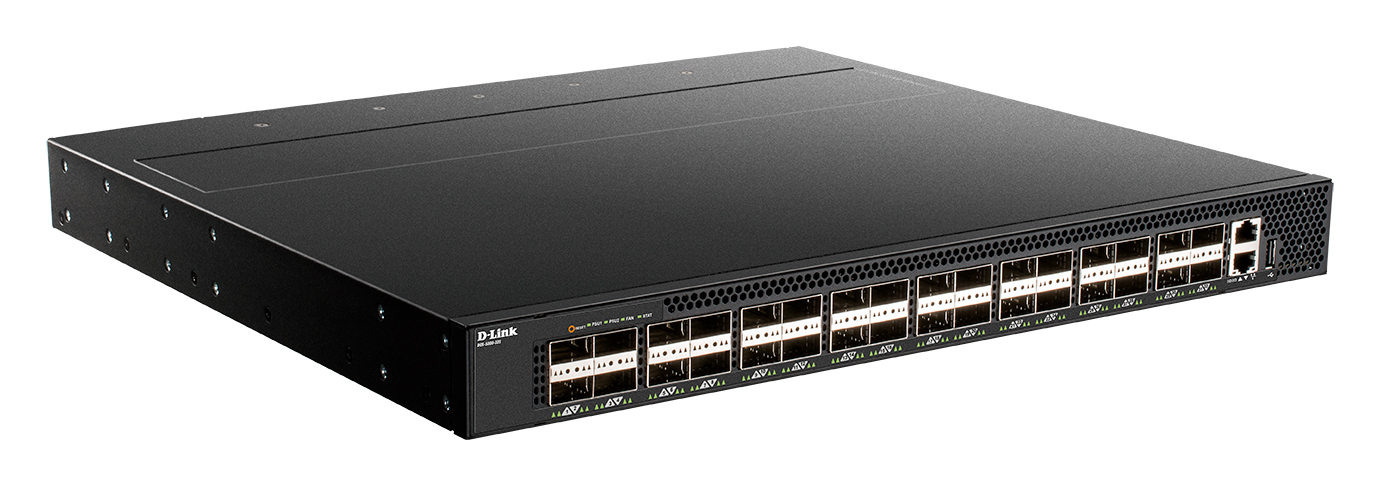

View from the right

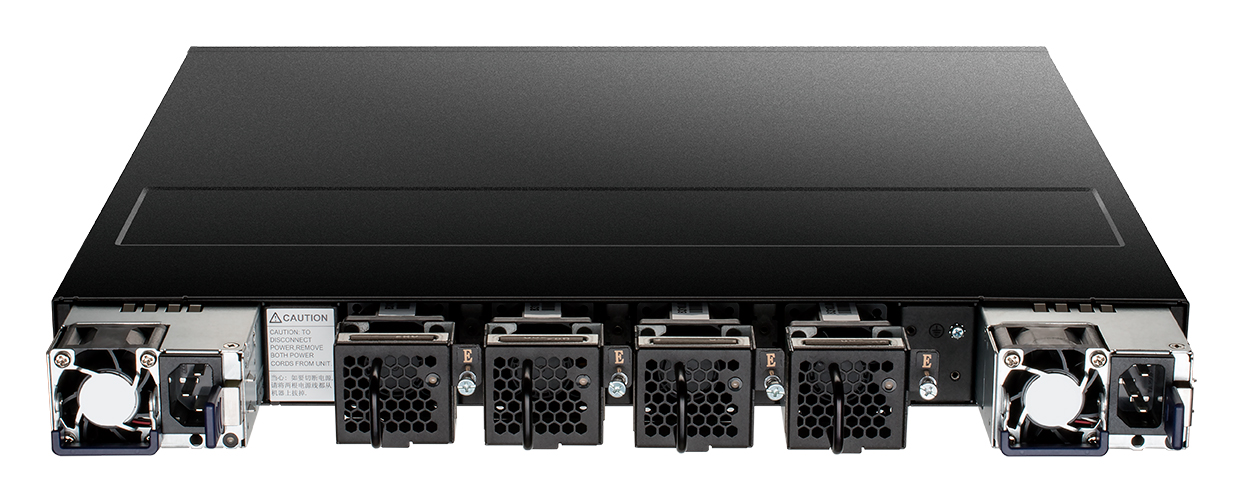

Back view

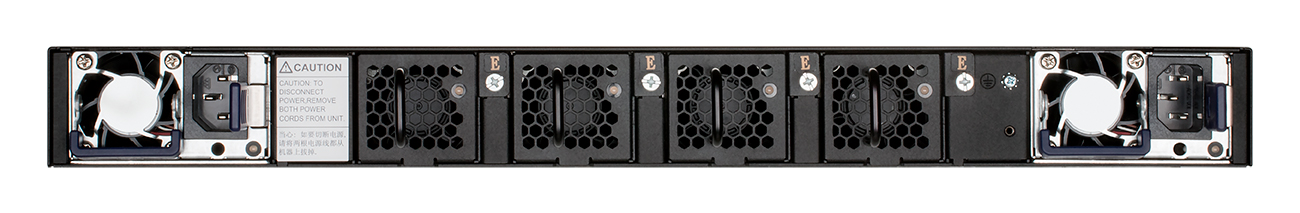

Back view
