DIS-100G-6S

Industrial Unmanaged Switch with 4 10/100/1000Base-T Ports and 2 1000Base-X SFP Ports

Description

The DIS-100G-6S Industrial Unmanaged Switch is equipped with 4 10/100/1000Base-T ports and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the switch is Plug-and-Play, allowing for effortless and swift deployment.

Durable, Reliable, and Efficient
The DIS-100G-6S switch is housed in a highly resistant IP40-rated metal casing to protect the switch from harsh environmental conditions. The high electromagnetic compatibility (EMS) protects the DIS-100G-6S from undesirable effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-100G-6S while also enabling them to operate in a wide temperature range from -20 °C up to 65 °C. With DIN rail mounting capability, the DIS-100G-6S can fit seamlessly into your industrial equipment infastructure. In addition, the DIS-100G-6S supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.

Meanwhile, a powerful IEEE 802.1p Quality of Service (QoS) engine prioritizes network traffic so that high-priority data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming critical data such as from surveillance and recognition systems.

Green Ethernet Technology
The DIS-100G-6S features green technology; IEEE 802.3az Energy-Efficient Ethernet (EEE). Energy Efficient Ethernet reduces the power consumption of the switches when network utilization is low, effectively lowering the cost of ownership during periods of inactivity.

General features

Hardware Version
• A1

Number of Ports
• 4 10/100/1000Base-T ports
• 2 SFP ports

Alarm Relay
• 1 A at 24 V

Diagnostic LEDs
• PWR
• SFP
• Link/Activity

Port Functions
• IEEE 802.3 for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3ab for Gigabit Ethernet
• IEEE 802.3z for Gigabit fiber
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Media Interface Exchange
• Auto-MDI/MDIX adjustment for all twisted pair ports

Switching Capacity
• 12 Gbps

Transmission Method
• Store-and-forward

Maximum Forwarding Rate
• 8.928 Mpps

MAC Address Table Size
• Up to 4K entries

Jumbo Frame
• 9.6 KB

Advanced Features
• IEEE 802.1p Quality of Service (QoS) - 8 hardware queues per port

Physical Parameters
Power Input
• 12 to 48 V DC terminal block dual input

Power Consumption
• Maximum: 4.82 W
• Standby: 2.45 W

Heat Dissipation
• 16.44 BTU/hr

MTBF
• 569,768 hrs

Weight
• 0.4458 kg

Dimensions
• 102 x 28 x 162 mm

Ventilation
• Fanless, passive cooling

Temperature
• Operating: -20° to 65°C
• Storage: -40° to 85°C

Humidity
• Operating: 5% to 95% non-condensing
• Storage: 5% to 95% non-condensing

Material
• IP40-rated metal casing

Installation
• DIN rail

Certifications
• CE
• FCC

EMI
• 47 CFR FCC Part 15 Subpart B (Class A)
• ICES-003 Issue 6 (Class A)

EMS
• EN 61000-4-2 ESD
• EN 61000-4-3 RS
• EN 61000-4-4 EFT
• EN 61000-4-5 Surge
• EN 61000-4-6 CS
• EN 61000-4-8

Environmental Tests
• IEC 60068-2-27 Shock
• IEC 60068-2-32 Freefall
• IEC 60068-2-6 Vibration

Certificates

Order info

DIS-100G-6S/A1A  Industrial Unmanaged Switch with 4 10/100/1000Base-T Ports and 2 1000Base-X SFP Ports

Pictures

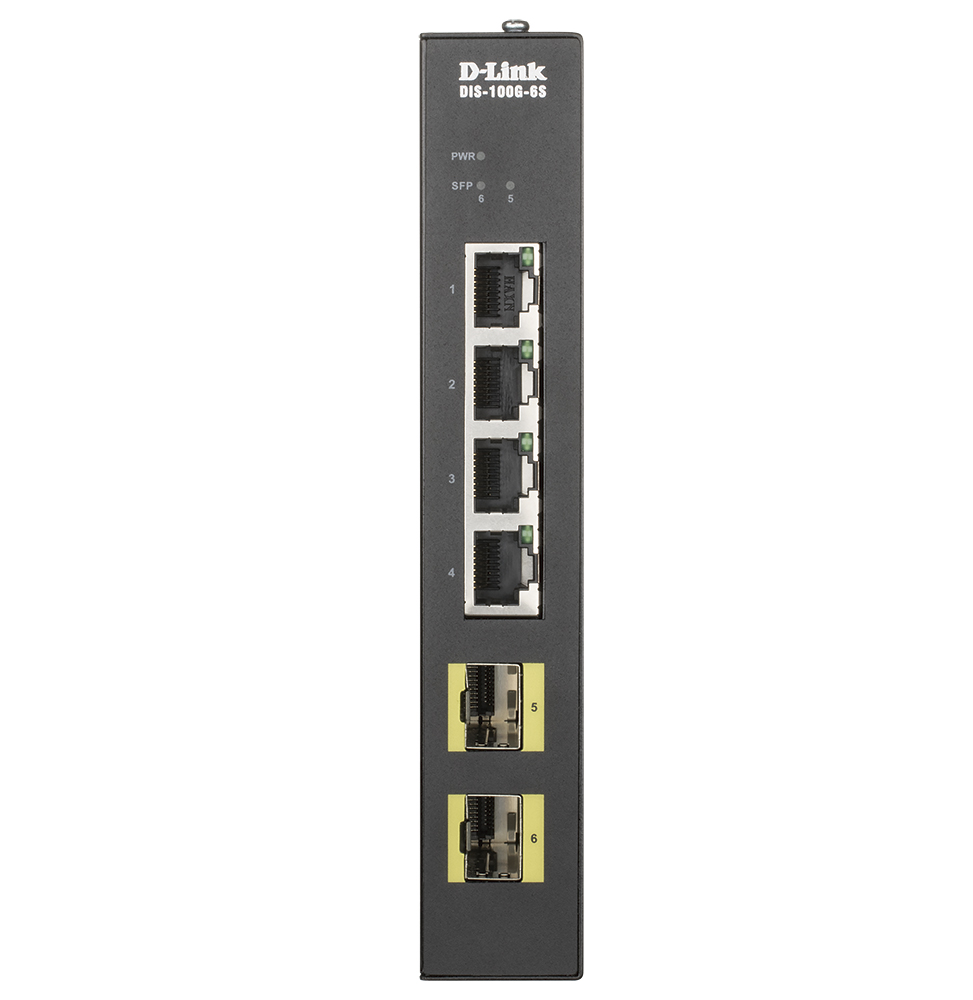

DIS-100G-6S/A

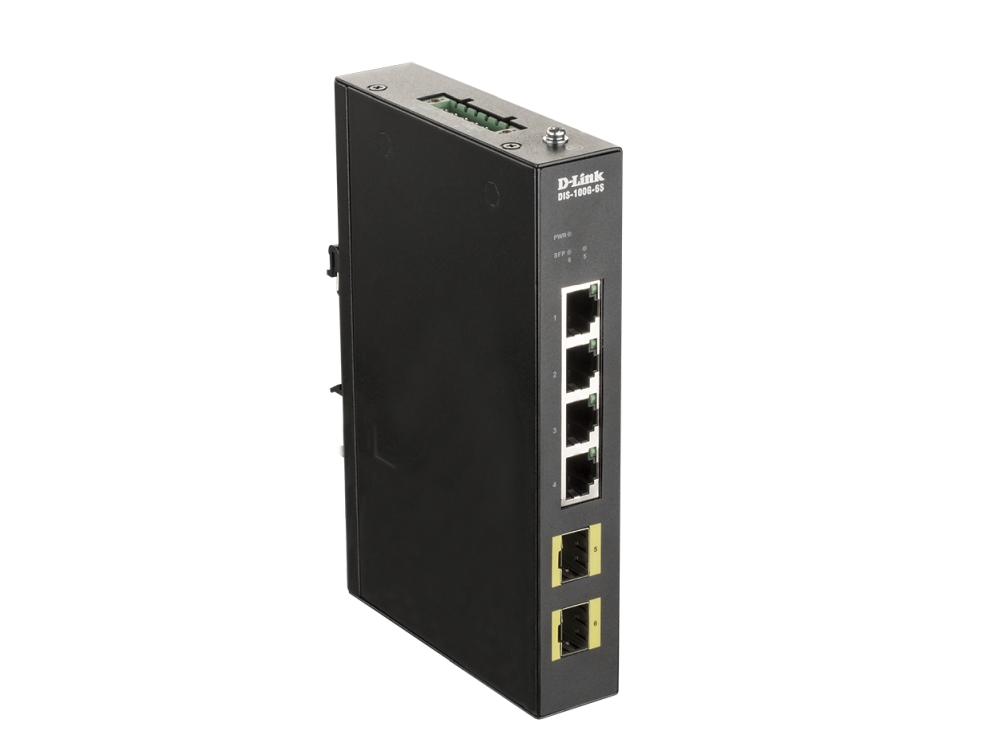

View from the right
View from the right

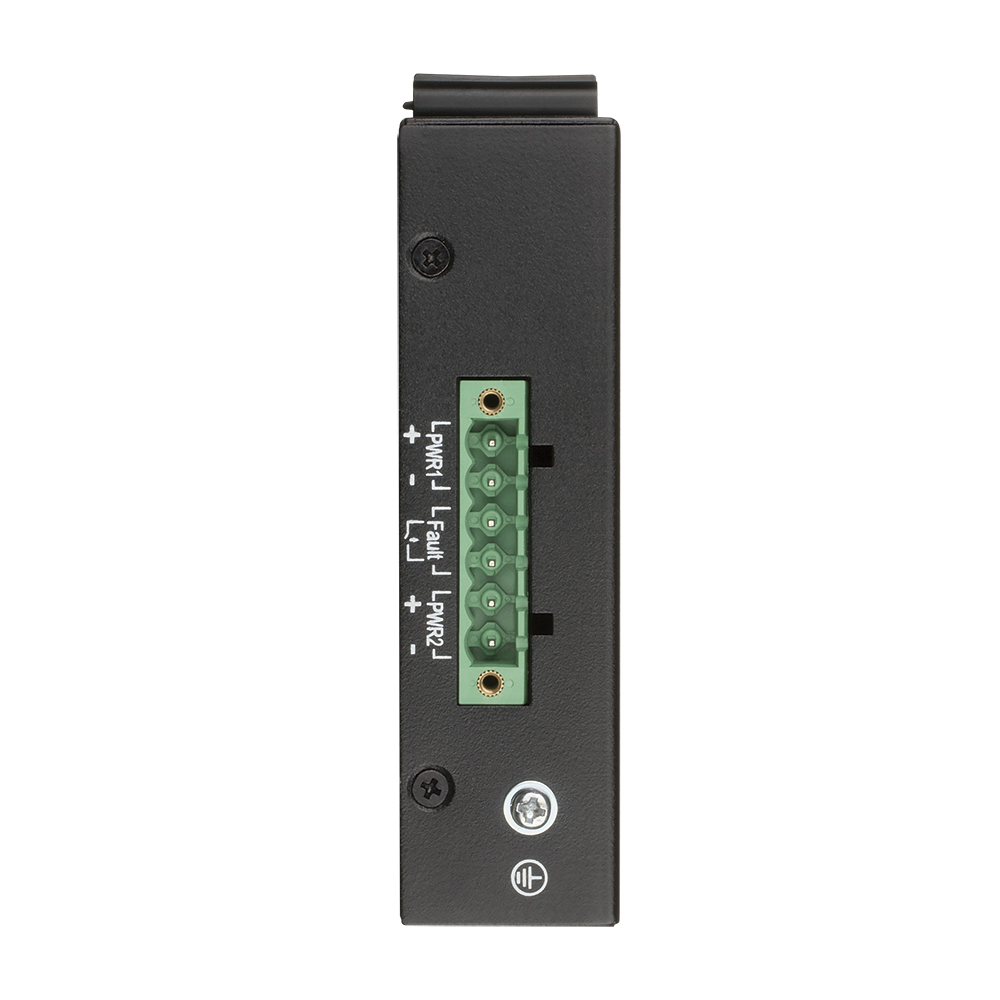

Back view
